Narrow Roof Deck Home

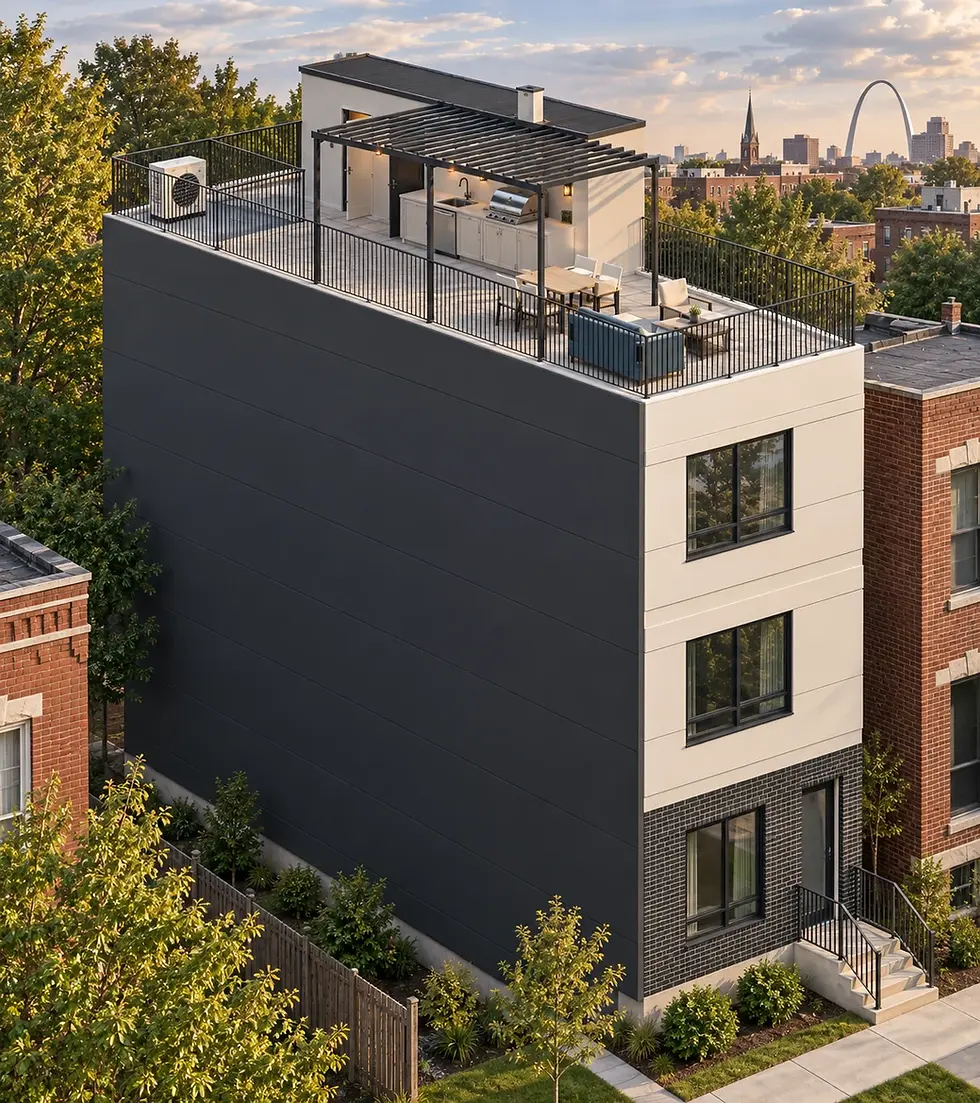

Narrow Roof Deck Home exterior concept

Three bedrooms, a private primary suite and a rooftop terrace bring generous living to a 16-foot-wide home.

Products & Designs / Design collection / Narrow Roof Deck Home

The home at a glance

  • 16 × 48 ftFootprint / home
  • 2,304 sfGross floor area
  • 3 + 3Bedrooms + baths
  • 3Stories

Three 16 × 48 ft floor plates, including walls and stair openings. Roof terrace is additional. Not net living area.

Designed for everyday life

Every level has a purpose. An open living and kitchen floor anchors the home, with a four-seat dining table against the right wall and a dedicated workstation behind the powder room. A separate bedroom level brings laundry close to everyday life, and the primary suite adds a dressing room. Above it all, a rooftop cooking and dining terrace makes room to gather outdoors.

  • Three bedrooms with a separate primary dressing room
  • Two full bathrooms and two powder rooms
  • Bedroom-level laundry
  • Rooftop cooking and dining terrace
  • Dedicated home workstation on the living level

Discuss Narrow Roof Deck Home with MBS →

Concept design. Images illustrate design intent. Site fit, specifications, engineering and approvals are developed for each project.

Floor plans & 3D models

Explore each level with its floor plan and furnished 3D model, then browse the exterior and interior slideshows below.

Living level

Floor plan + furnished 3D model · Select either image for the original resolution.

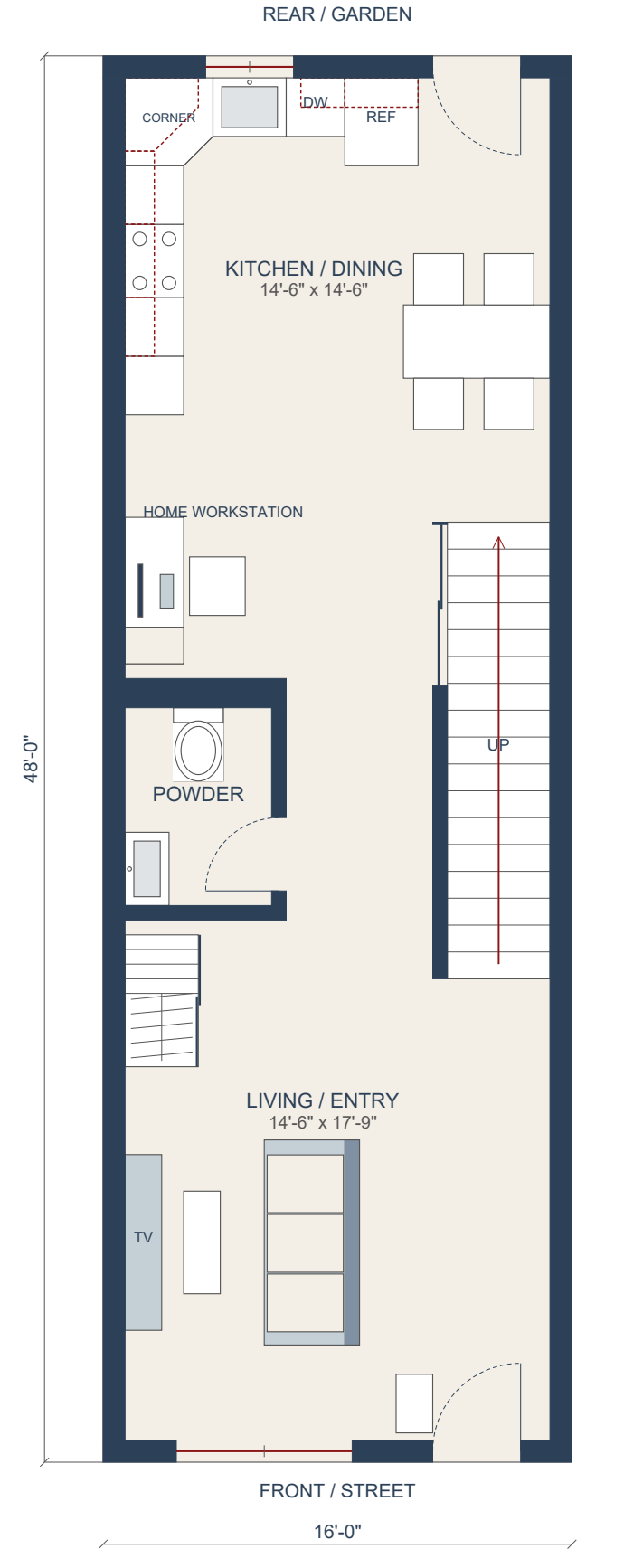

Narrow Roof Deck Home — Living level — floor plan concept by Module Building Systems.

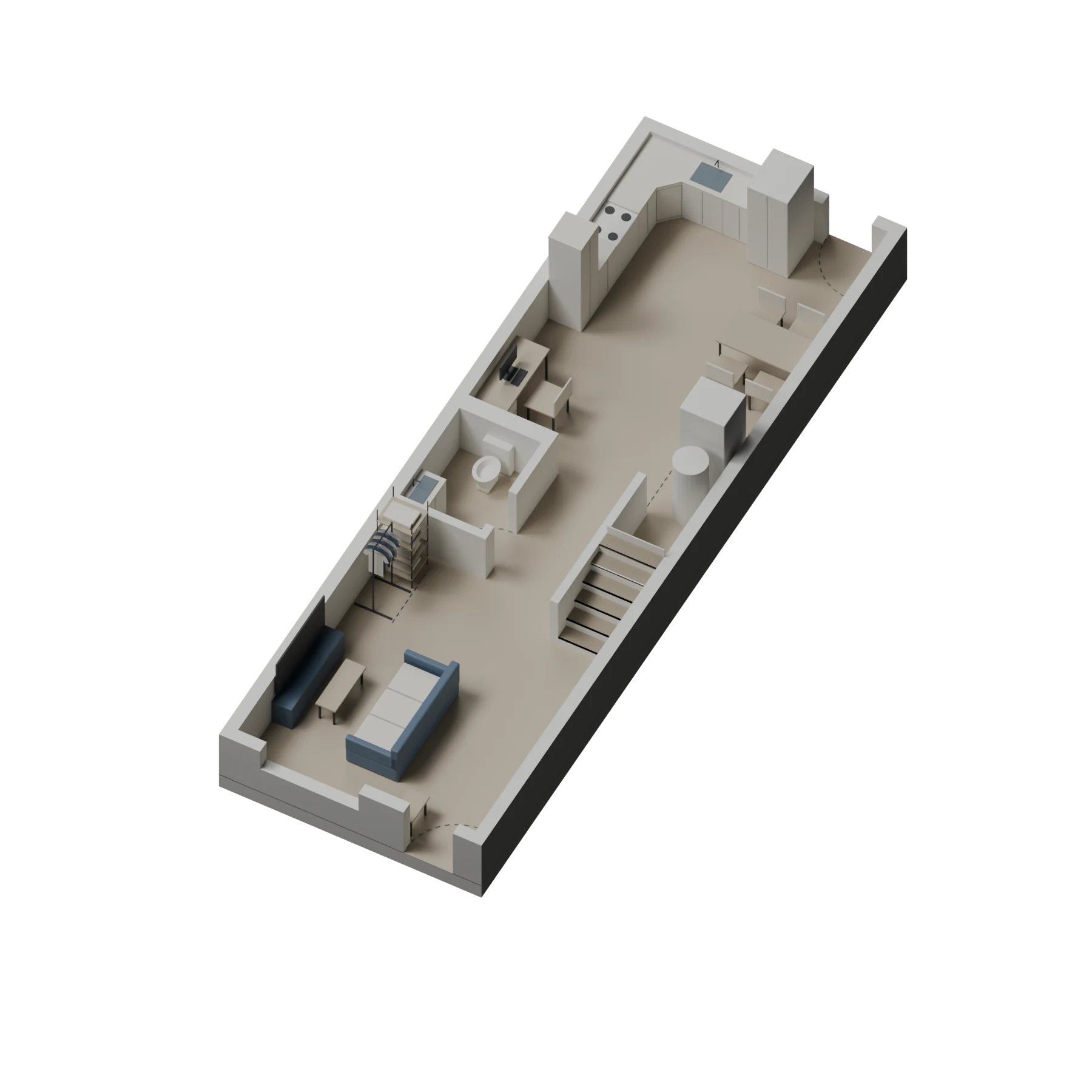

Narrow Roof Deck Home — Living level — furnished 3D model concept by Module Building Systems.

Bedroom level

Floor plan + furnished 3D model · Select either image for the original resolution.

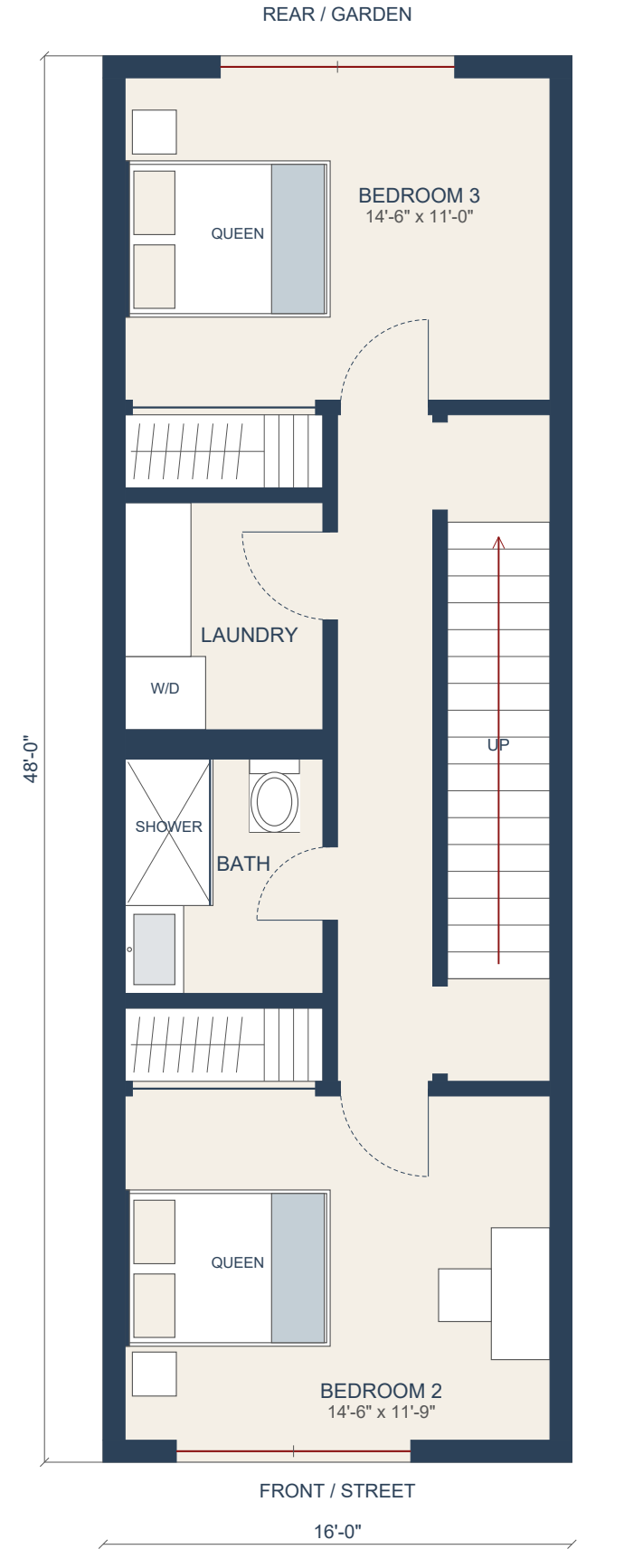

Narrow Roof Deck Home — Bedroom level — floor plan concept by Module Building Systems.

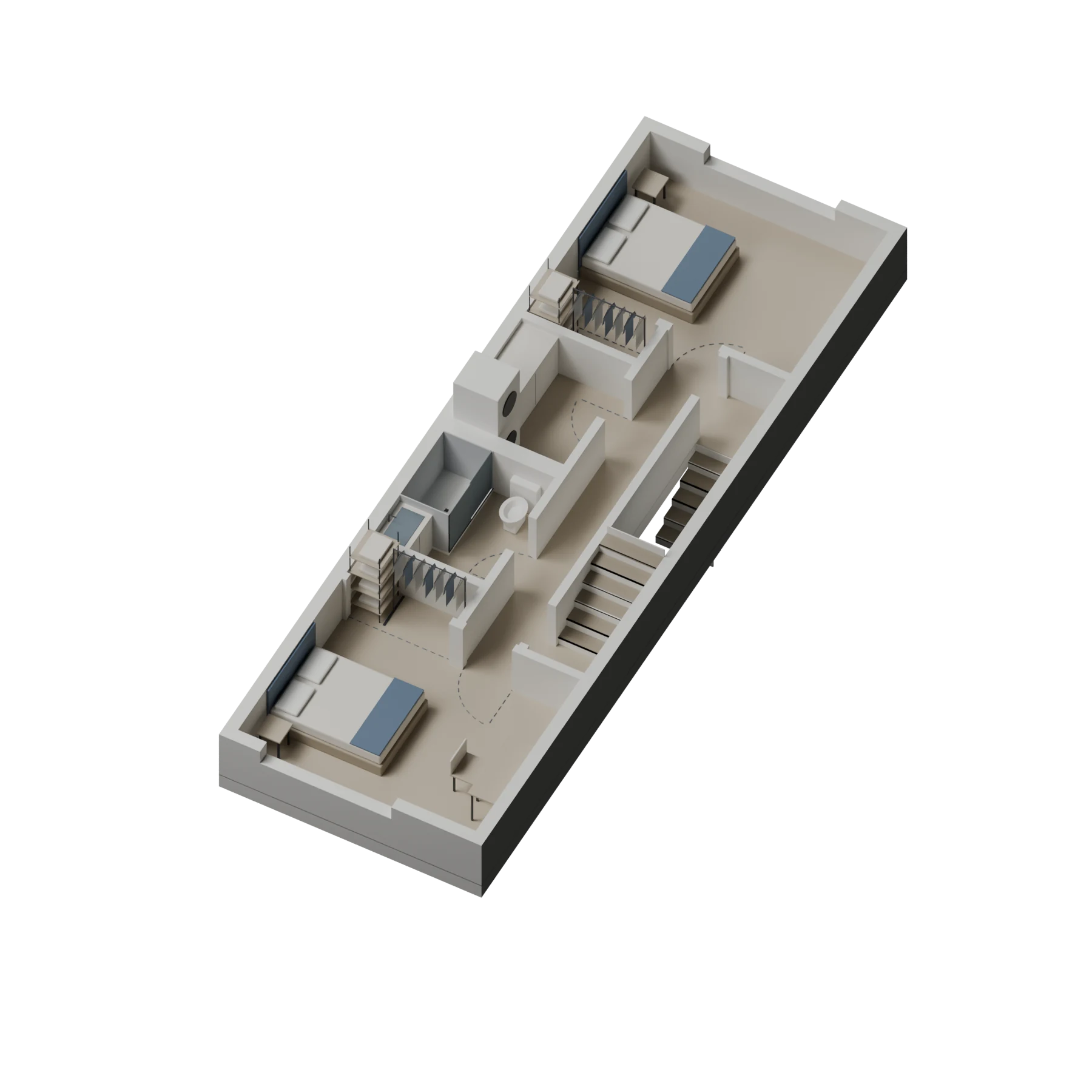

Narrow Roof Deck Home — Bedroom level — furnished 3D model concept by Module Building Systems.

Primary suite level

Floor plan + furnished 3D model · Select either image for the original resolution.

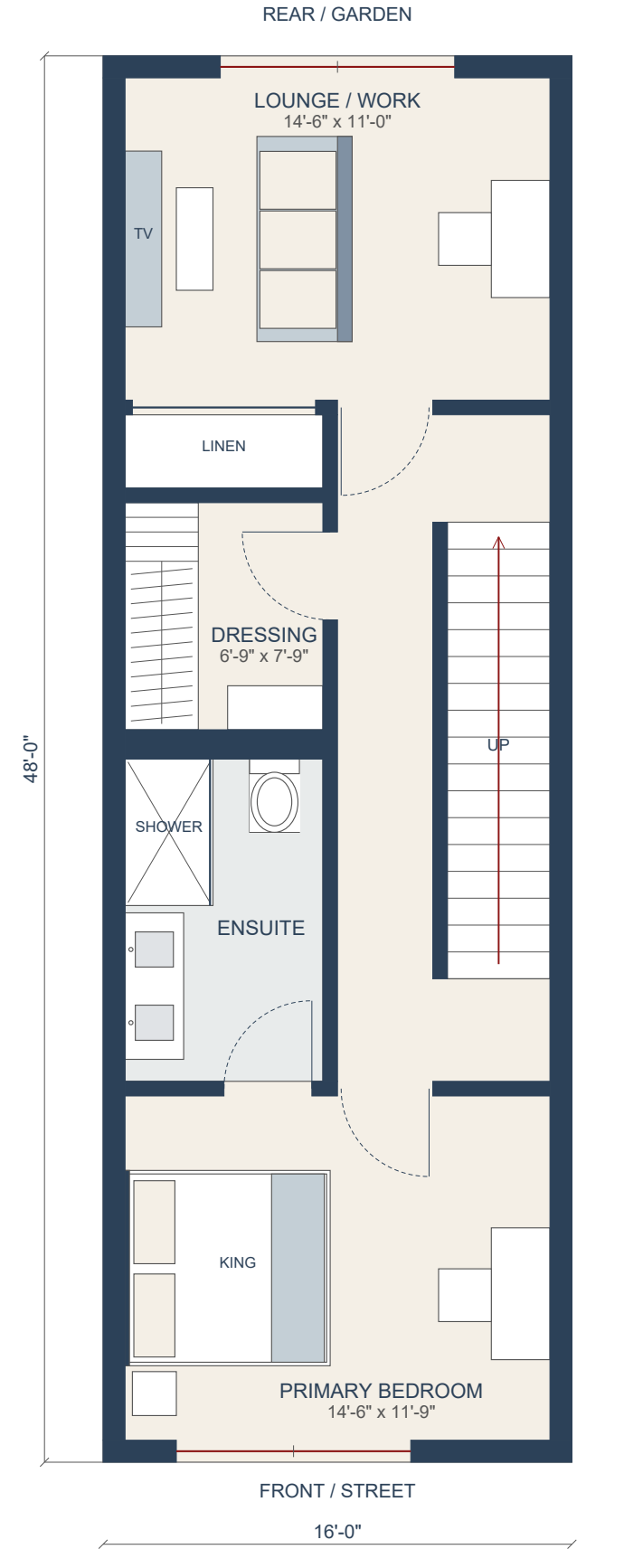

Narrow Roof Deck Home — Primary suite level — floor plan concept by Module Building Systems.

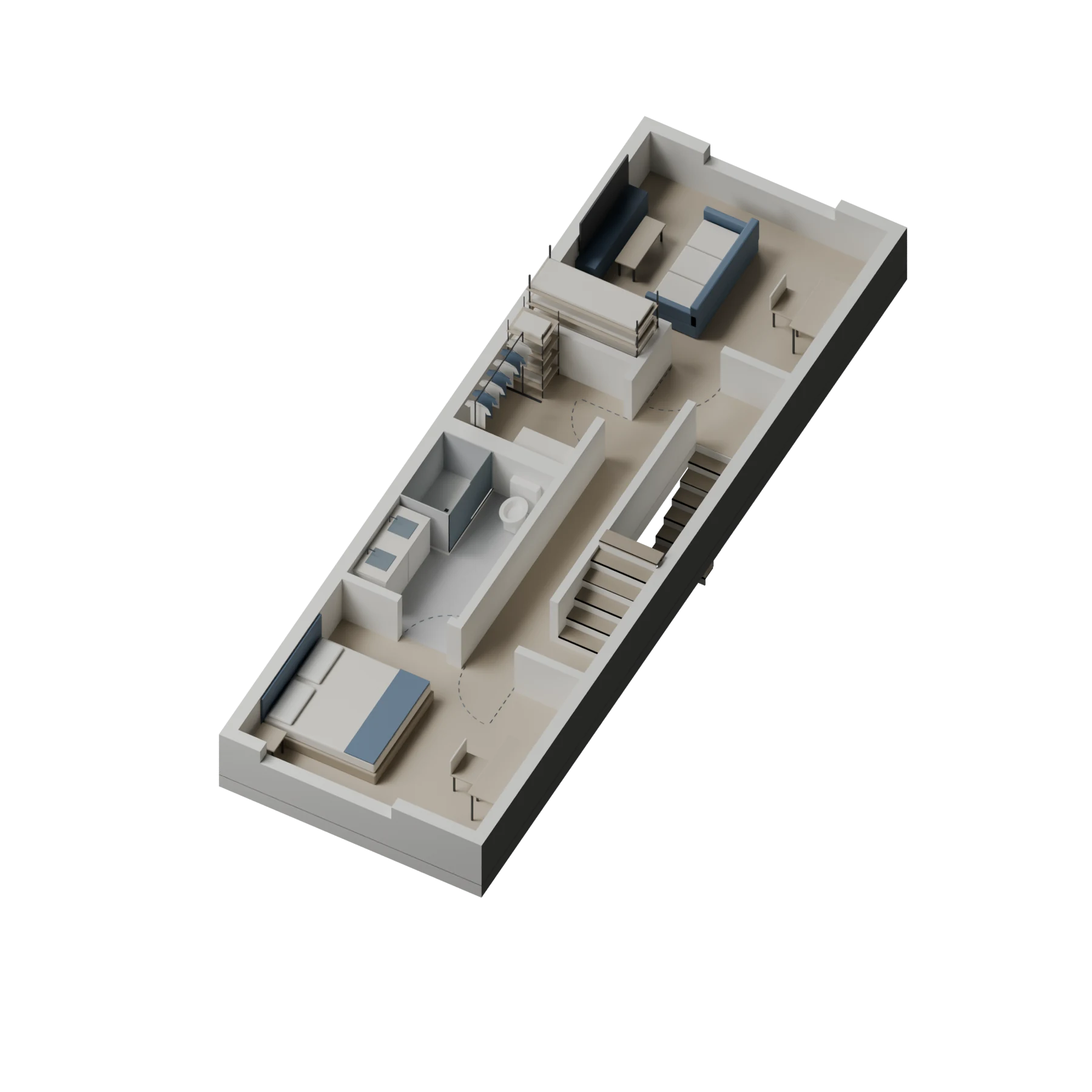

Narrow Roof Deck Home — Primary suite level — furnished 3D model concept by Module Building Systems.

Roof terrace

Floor plan + furnished 3D model · Select either image for the original resolution.

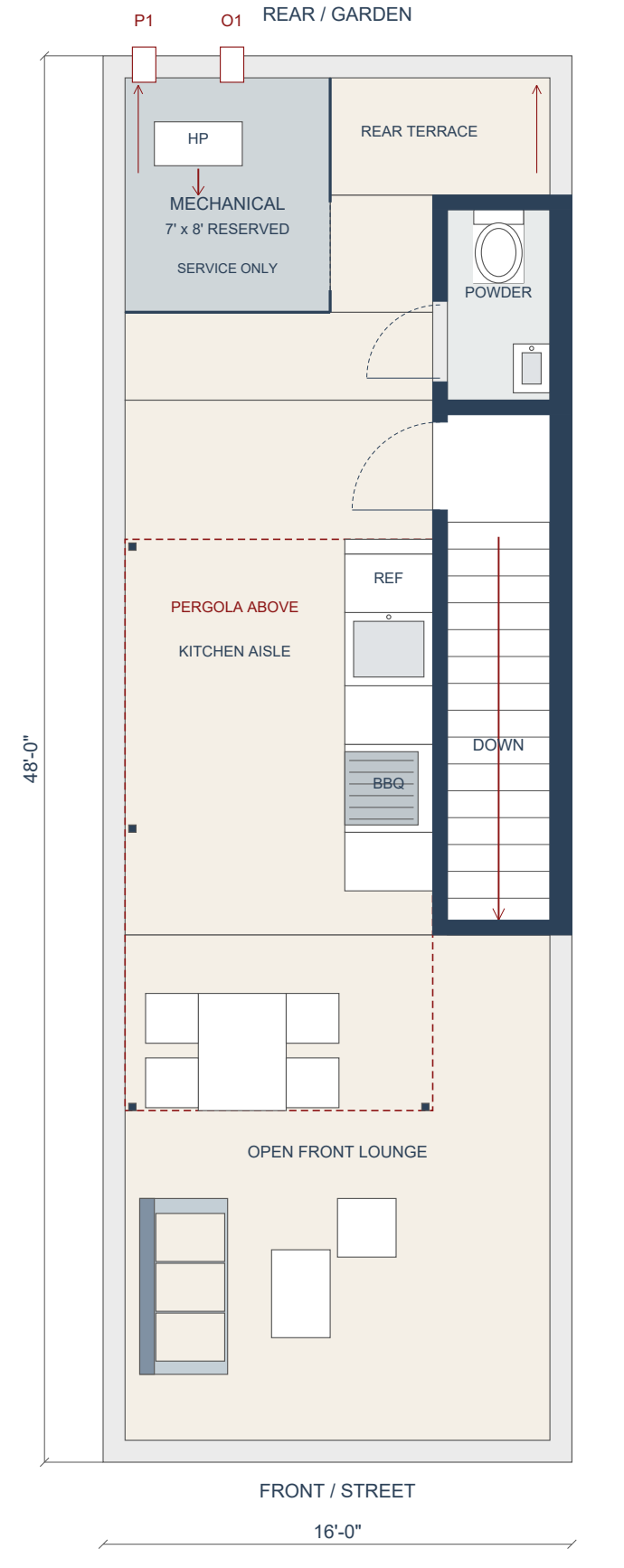

Narrow Roof Deck Home — Roof terrace — floor plan concept by Module Building Systems.

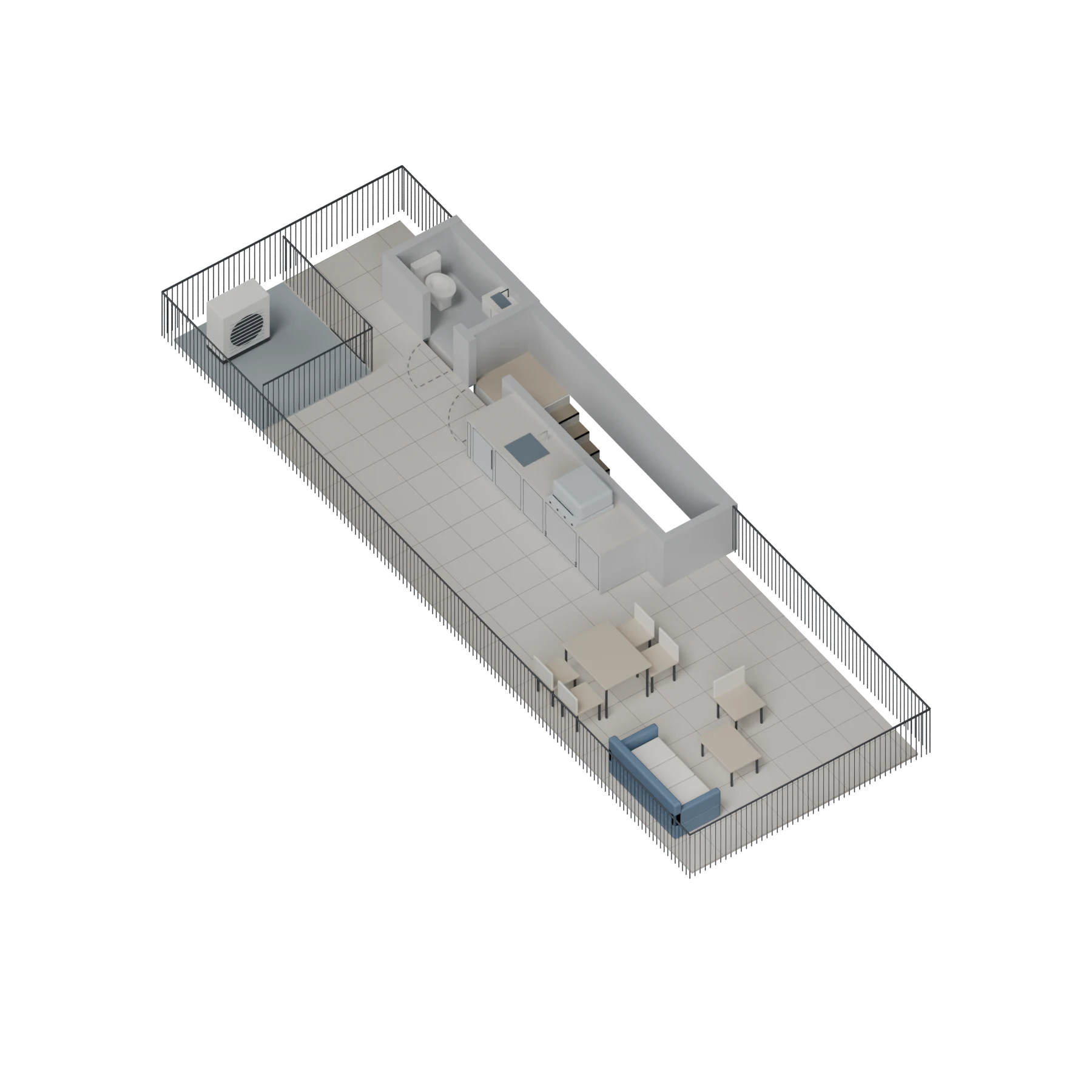

Narrow Roof Deck Home — Roof terrace — furnished 3D model concept by Module Building Systems.

Exterior renderings

Explore the complete exterior views. Use the arrows to browse or select an image to enlarge it.

Interior renderings

Use the arrows to explore the rooms or select an image to enlarge it.

Let’s talk about your project.

Interested in the Narrow Roof Deck Home? Share your location, timeline and goals with our team.

Discuss your project →
