18-Foot Rowhome
Three bedrooms, a primary suite and an open living floor in a compact, repeatable rowhome.
Products & Designs / Design collection / 18-Foot Rowhome
The home at a glance
- 18 × 44 ftFootprint / home
- 1,584 sfGross floor area / home
- 3 + 2.5Bedrooms + baths
- 2Stories
Two 18 × 44 ft floor plates, including walls and the upper stair opening. Net usable area is lower.
Designed for everyday life
An individual front door opens to everyday living at the front and cooking and dining at the rear. Upstairs, three bedrooms include a private primary suite, with a shared bath and laundry off the landing. The typical interior home works without side windows, supporting an attached arrangement.
- Three bedrooms and 2.5 bathrooms
- 18-foot frontage per home
- Individual front and rear entries
- Bedroom-level laundry
Discuss 18-Foot Rowhome with MBS →
Concept design. Images illustrate design intent. Site fit, specifications, engineering and approvals are developed for each project.
Floor plans & 3D models
Explore each level with its floor plan and furnished 3D model, then browse the exterior and interior slideshows below.

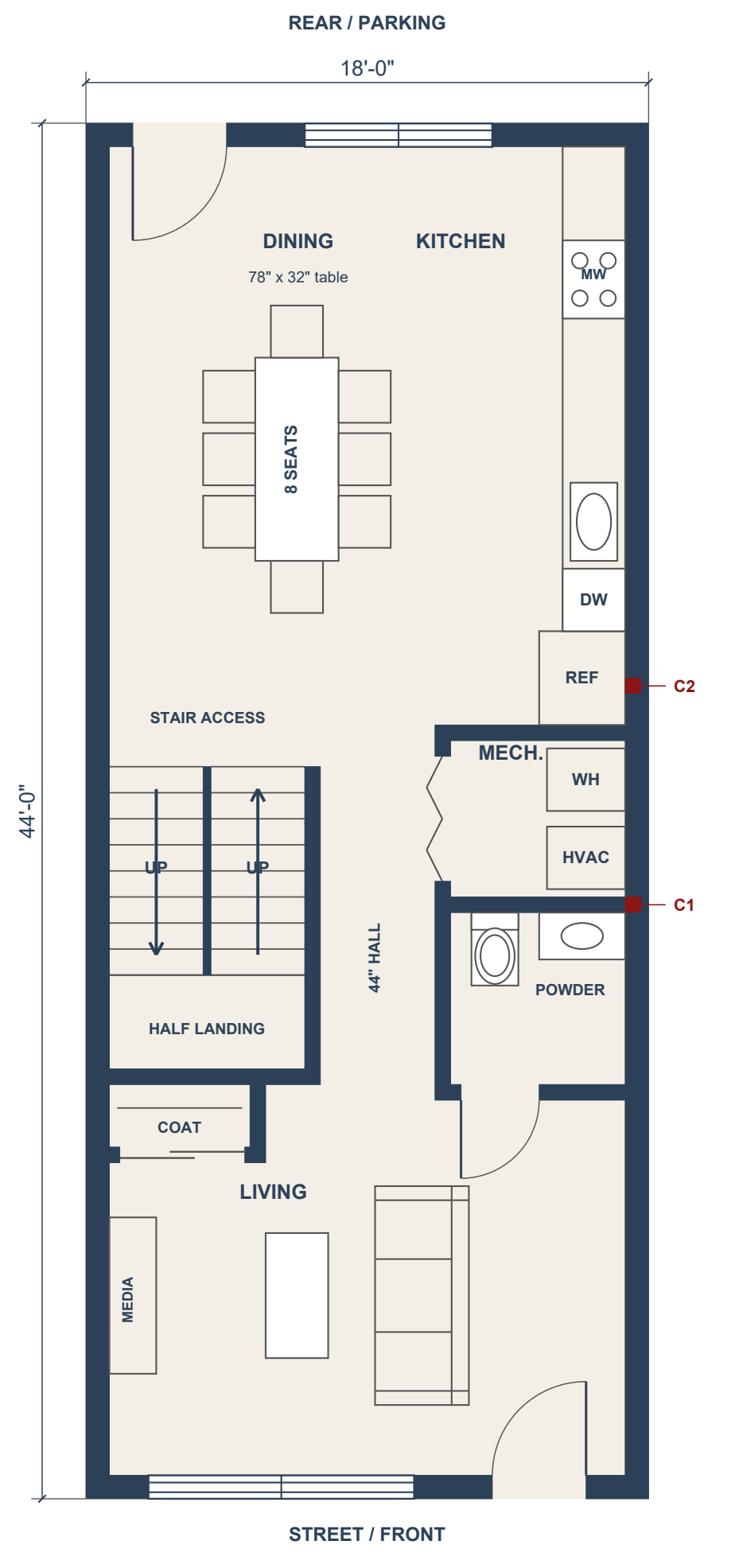

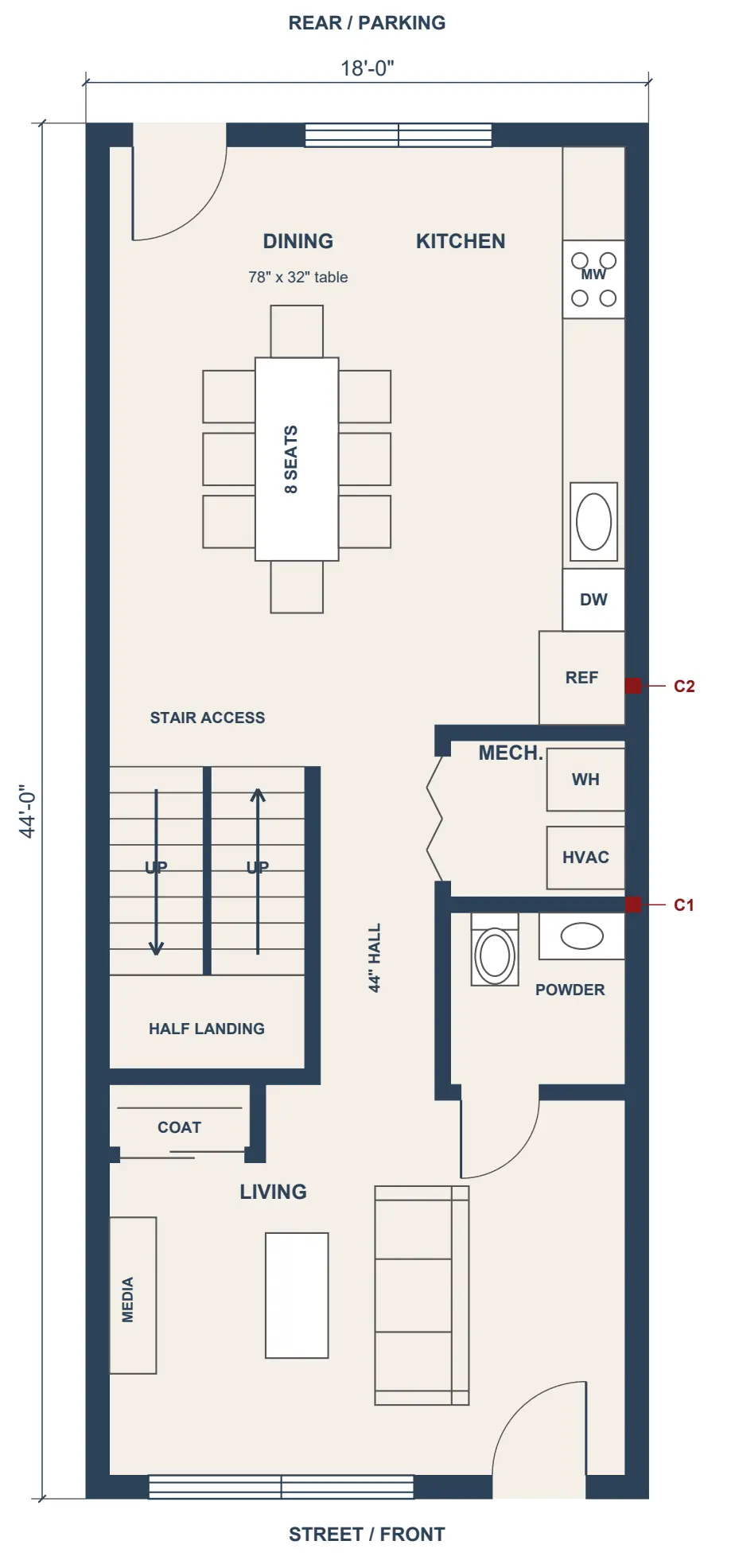

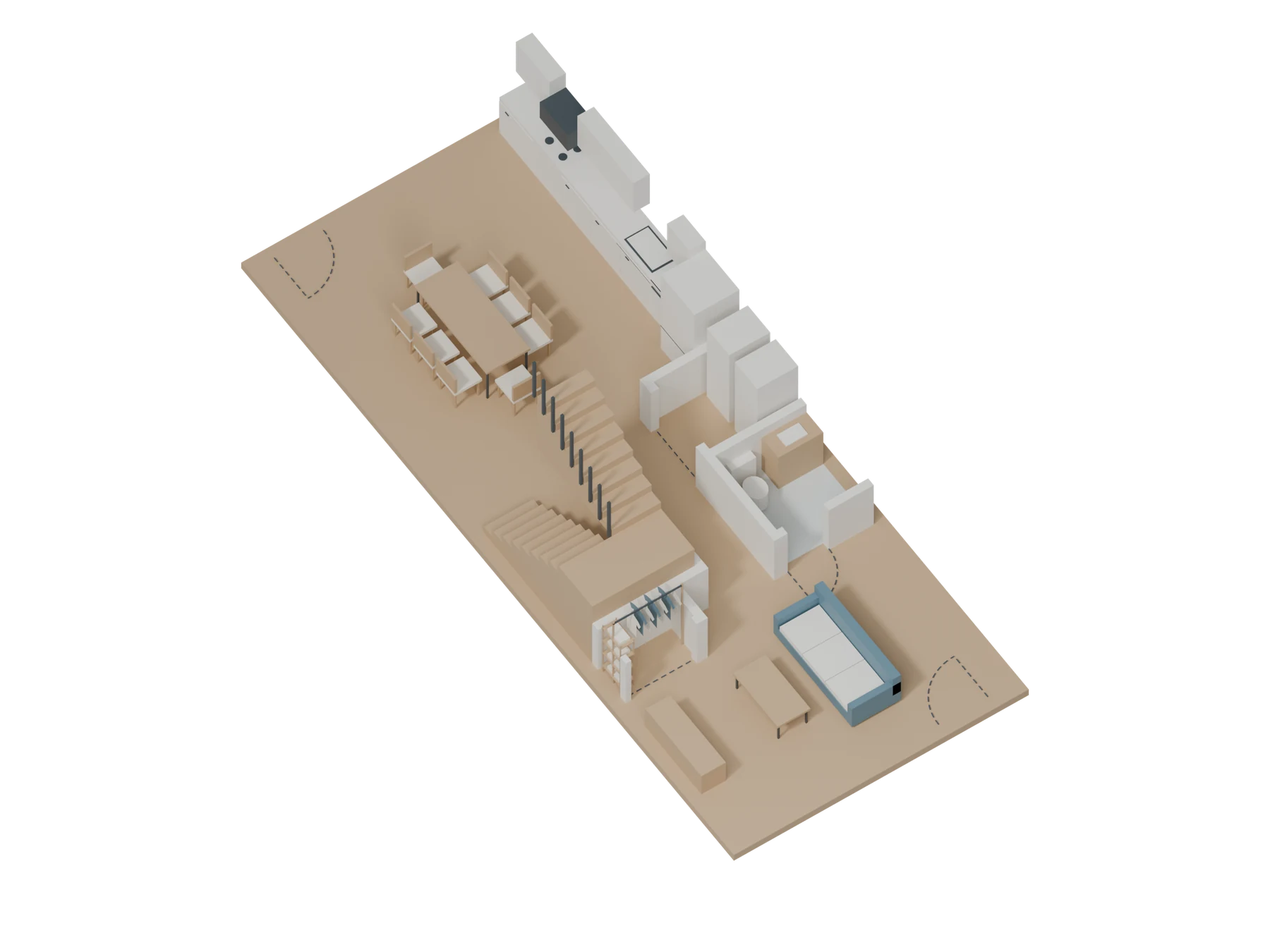

Living level
Floor plan + furnished 3D model · Select either image for the original resolution.

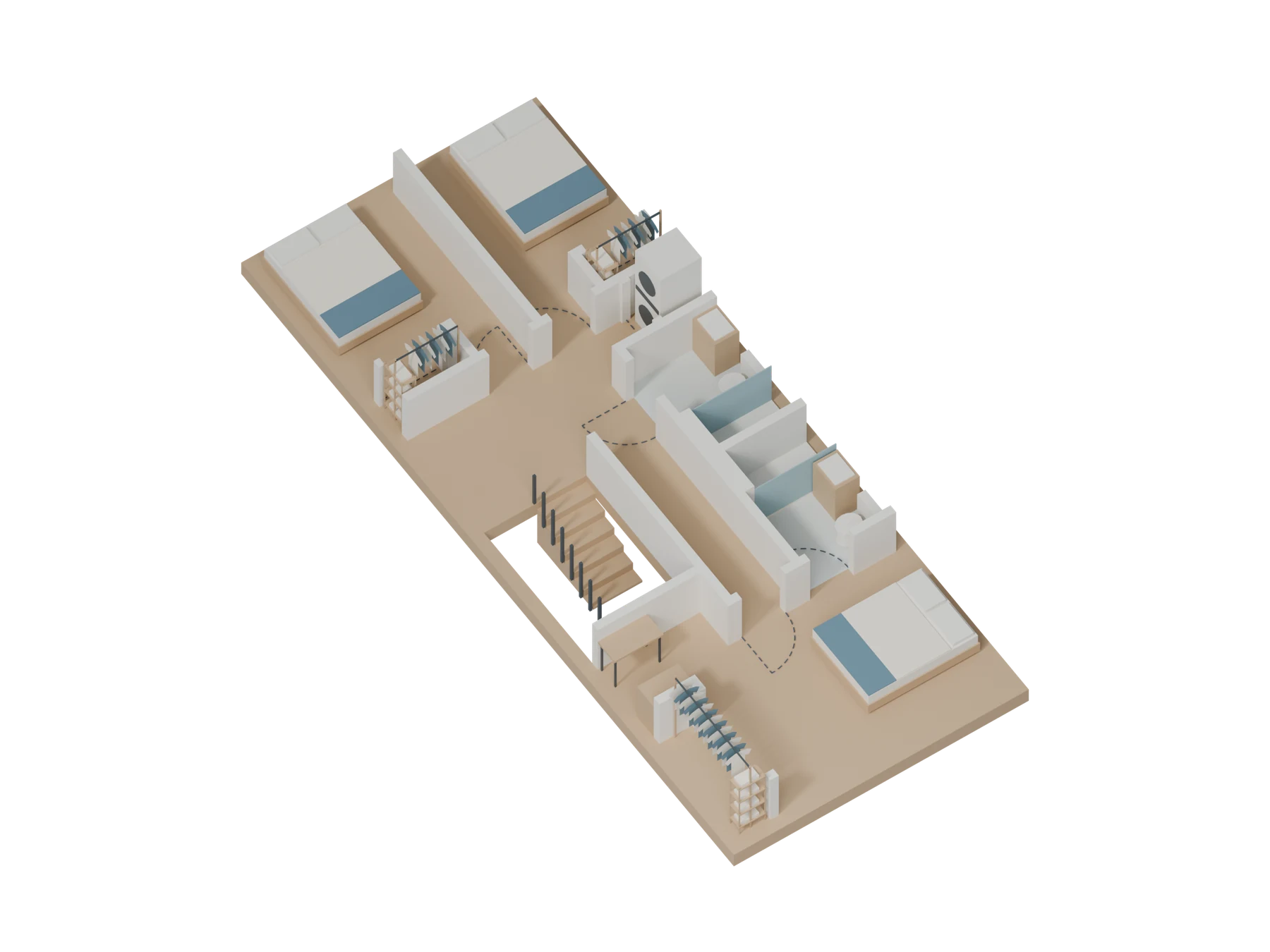

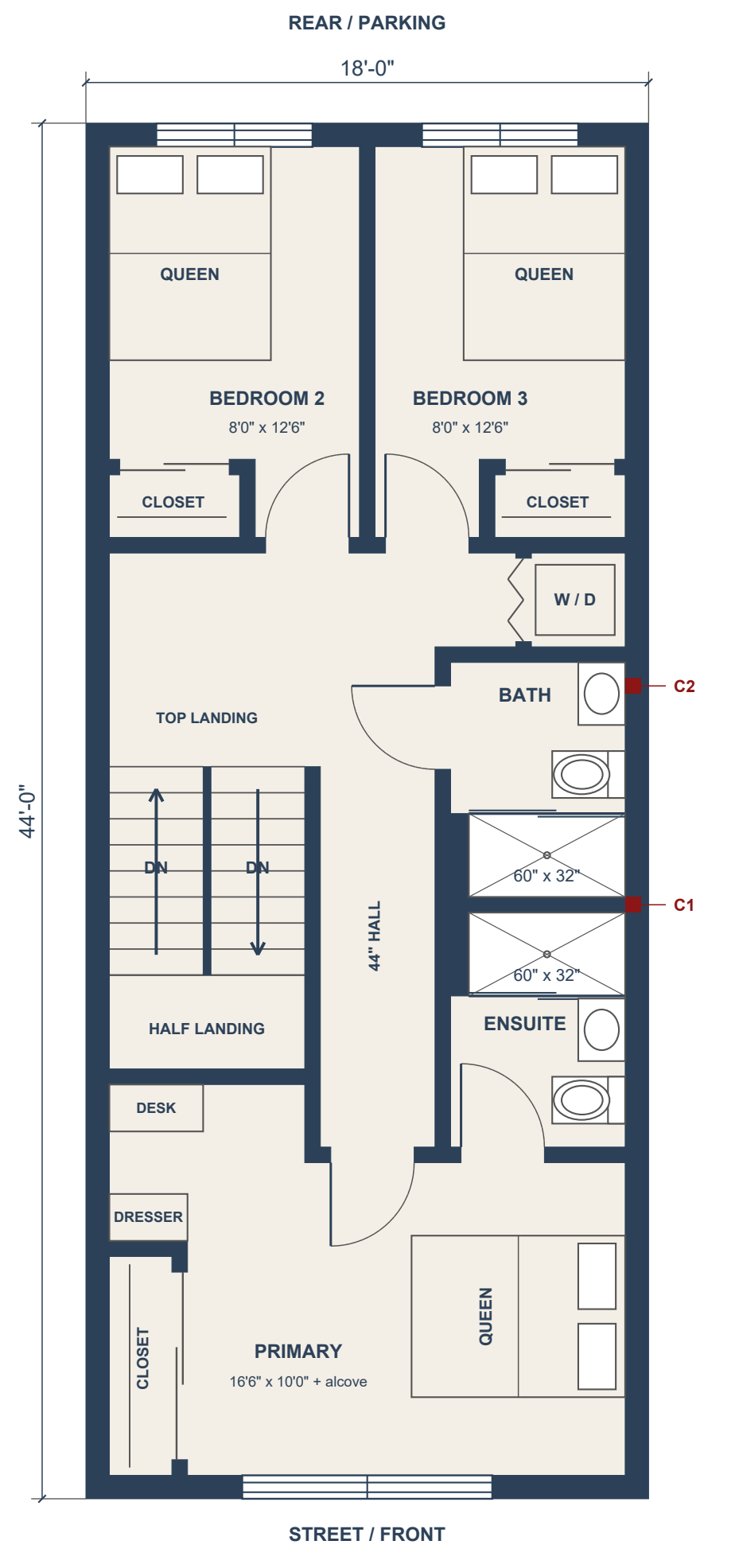

Bedroom level
Floor plan + furnished 3D model · Select either image for the original resolution.
Exterior renderings
Explore the complete exterior views. Use the arrows to browse or select an image to enlarge it.
Interior 3D views
Existing furnished native model views. Use the arrows to explore the rooms or select an image to enlarge it.
Let’s talk about your project.
Interested in the 18-Foot Rowhome? Share your location, timeline and goals with our team.
